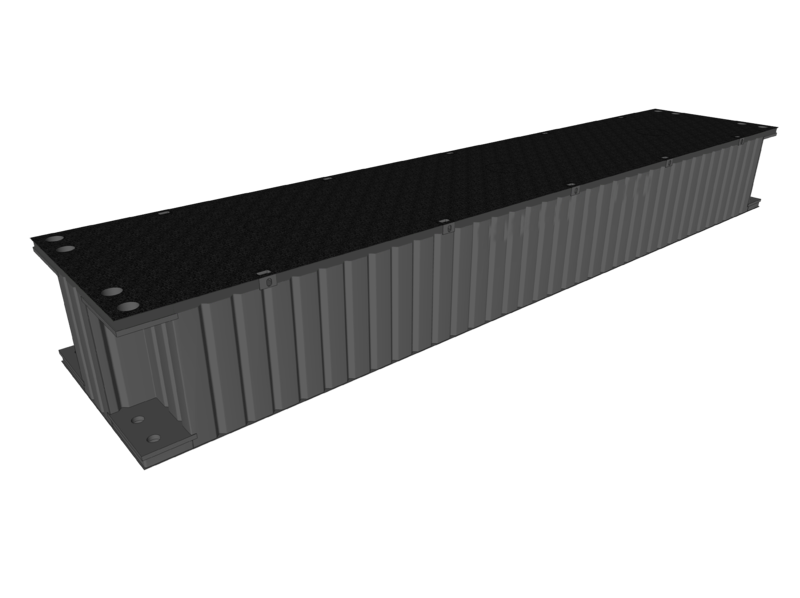

Container pontoon (VCP)

Sometimes a task demands extreme measures. Thanks to the container pontoons of Janson Bridging even the most difficult tasks on water can be implemented with ease. Thanks to the deck load of 12 ton per square metre and our unique coupling system, even the heaviest type of material can be safely worked with on water.

Janson Bridging is capable of supplying occasion compositions in every desired form. Whether you need to assemble something with a groove in the middle or a specific work island, we can manage that. The container pontoons can also be deployed as a pontoon bridge.

The pontoon is assembled from three water-tight compartments, each one equipped with a manhole. Corner blocks are placed on the pontoon for affixing any possible provisions. By delivering such items as spud poles, winches, bollards and more, we hope to make the work as easy as possible. Moreover, the pontoon is DNV certified. Furthermore, we will be glad to help you with stability and strength calculations.

VCP-1500-12

Solution
Pontoons
Type
VCP
Length
11,98m
Width
2.48m
Height
1½m
Weight
10.500 kg
Load-bearing capacity in case of 30 cm freeboard
21.000 kg
Deck load
12 ton/m2
Certification
DNV-GL

VCP-1500-6

Solution
Pontoons
Type
VCP
Length
5.98m
Width
2,48m
Height
1½m
Weight
8.000 kg
Load-bearing capacity in case of 30 cm freeboard
8.000 kg
Deck load
12 ton/m2
Certification
DNV-GL

Container pontoons

  • Suitable for heavy work
  • Deck load of 12 ton per m2
  • Can be coupled both in length and width
  • Many available accessories
  • DNV certified
Container pontoon
